2.6. Create Cost Allocation Tags for Analysis using AWS Cost Explorer.#

Step by step instructions for using cost allocation tags. This method was obtained from the following website:
Using Cost Allocation Tags with AWS ParallelCluster”
Note, tags can’t be updated for the pcluster after the cluster is created. Limited Tag updates on Parallel Cluster

Steps 1&2 have already been implemented for the CMAS Center Account.

2.6.1. Activation of an AWS Defined tag: createdBy in the Console#

Go to the Billing and Cost Management.
On the left panel select Cost Allocation Tags
On the AWS Generated cost allocation tags tab
search for aws:createdBy
Select and then click on activate.

2.6.2. Tags used in this example#

The post_install.sh script saved to the s3 bucket will create the user defined tags.
Link to post_install.sh script: post_install.sh

aws-parallelcluster-username
aws-parallelcluster-jobid
aws-parallelcluster-project

The values for these tags will be set in the yaml file used to create the parallel cluster.

2.6.3. Creation of the pclusterTagsAndBudget IAM Policy#

This was done via the AWS console.
Edited a policy named pclusterTagsAndBudget
Implemented the following policies

    Type: 'AWS::IAM::ManagedPolicy'
    Properties:
      ManagedPolicyName: pclusterTagsAndBudget
      Path: /
      PolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Action:
              - 'ec2:DeleteTags'
              - 'ec2:DescribeTags'
              - 'ec2:CreateTags'
            Resource: '*'
          - Effect: Allow
            Action:
              - 'budgets:ViewBudget'
            Resource: 'arn:aws:budgets::*:budget/*'

The above definition is from the pcluster_env.yml file, but I didn’t see how that code was used, so I implemented it through the console.

2.6.4. Create S3 bucket#

In this example, create a s3 bucket named cost-alloc-tag-pcluster. Obtain and modify the following files according to the tutorial.

pcluster_env.yml
post_install.sh
projects_list.conf
sbatch

Review each of the files that will be placed in the S3 bucket.#

The top of the script will alert you to what needs to be modified.

Example pcluster_env.yml script, this does not need to be modified:
Link to pcluster_env.yml script: pcluster_env.yml

The sbatch script needs to be edited to specify your account ID.

Example sbatch script:
Link to sbatch script: sbatch

Edit the batch script#

The script is used as wrapper to the Slurm sbatch command. Replace <account_id> with the id of your account.

Also, the sbatch script has a setting that turns on or off the budgeting capability.
For users to be notified that they have exceeded their budget allocation, then you would turn this on.
See the AWS Tutorial for information about how to set up a budget.

Example projects_list.conf:#

Link to projects_list.conf projects_list.conf

The project list is case sensitive. When the user submits their command using

sbatch --comment <project name>  run_cctm_2018_12US1_listos.csh

The value used for project name must match the value in the projects_list.conf for that user. Note, that the tag specified in the yaml file is the value used, and the value specified at the sbatch –comment no longer changes the tag associated with the cluster.

ec2-user=lizadams, manishsoni, ubuntu
lizadams=CMASOps, ProjectA
manishsoni=O3MAT, ProjectB
ubuntu=ProjectA, ProjectB, CMASOps, O3MAT

Note, currently we use one login ID, ubuntu to login IDs for the parallel cluster.


Permissions need to be added to the s3 bucket for each user that will be using these cost allocation tags by defining a bucket policy with permissions.

Example Bucket Policy (use console to create) - replace and

"Id": "Bucket-policy-cost-alloc",
    "Statement": [
        {
            "Sid": "Bucket-policy-cost-alloc",
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::<accountID>:user/<username>"
            },
            "Action": [
                "s3:GetObject",
                "s3:GetBucketLocation",
                "s3:ListBucket"
            ],
            "Resource": [
                "arn:aws:s3:::cost-alloc-tag-pcluster/*",
                "arn:aws:s3:::cost-alloc-tag-pcluster"
            ]
        }
    ]
}

This s3 bucket will be called by the yaml file used to create the cluster.

2.6.5. Review example yaml file that has the lines that need to be added highlighted by !!#

Region: us-east-1
Image:
  Os: ubuntu2404
HeadNode:
  InstanceType: c7g.large
  Networking:
    SubnetId: <subnet-id>
  Ssh:
    KeyName: <key>
  CustomActions:                                                     !! Add this code without the !! markers and text  to your yaml file
    OnNodeConfigured:                                                !!
      Script: s3://<bucket>/post_install.sh                          !!  <bucket> is replaced by s3 bucket name: cost-alloc-tag-pcluster (or create a and use a new bucket name)
  Iam:                                                               !!
    S3Access:                                                        !!
      - BucketName: <bucket>                                         !!
        EnableWriteAccess: False                                     !!
    AdditionalIamPolicies:                                            !!
      - Policy: arn:aws:iam::<account_id>:policy/pclusterTagsAndBudget !!
  LocalStorage:
    RootVolume:
      Encrypted: false
Scheduling:
  Scheduler: slurm
  SlurmSettings:
    ScaledownIdletime: 5
  SlurmQueues:
    - Name: queue1
      CapacityType: ONDEMAND
      Networking:
        SubnetIds:
          - <subnet-id>
        PlacementGroup:
          Enabled: true
      ComputeResources:
        - Name: hpc7g4xlarge
          InstanceType: hpc7g.4xlarge
          MinCount: 0
          MaxCount: 4
          DisableSimultaneousMultithreading: true
          Efa:
            Enabled: true
            GdrSupport: false
      CustomActions:                                                         !!
        OnNodeConfigured:                                                    !!
          Script: s3://<bucket>/post_install.sh                              !!
      Iam:                                                                   !!
        S3Access:                                                            !!
          - BucketName: <bucket>                                             !!
            EnableWriteAccess: False                                         !!
        AdditionalIamPolicies:                                               !!
          - Policy: arn:aws:iam::<account_id>:policy/pclusterTagsAndBudget   !!
SharedStorage:
  - MountDir: /shared
    Name: ebs-shared
    StorageType: Ebs
    EbsSettings:
      Encrypted: false
      SnapshotId: snap-0049a7c309f238500
  - Name: FsxLustre0
    StorageType: FsxLustre
    MountDir: /fsx
    FsxLustreSettings:
      DeletionPolicy: Delete
      StorageCapacity: 1200
      DeploymentType: SCRATCH_2
      DataCompressionType: LZ4
      ImportPath: s3://cmas-cmaq
Tags:                                                                        !!
  - Key: aws-parallelcluster-username                                        !!
    Value: <name>                                                            !!
  - Key: aws-parallelcluster-jobid                                           !!
    Value: listos.hpc7g.4xlarge                                              !!
  - Key: aws-parallelcluster-project                                         !!
    Value: CMASOPS                                                           !!

Note, these tags can not be updated using the pcluster command. Once the tags are set, they are used for the lifetime of the pcluster. To use new tags, you need to create new plcuster.

2.6.6. Use above template to modify your cluster yaml to add cost allocation tags#

Cut and paste the lines that have !! comments and add them to your cluster yaml file.

2.6.7. Review Example Cost Allocation Yaml#

cd pcluster-cmaq/yaml/

2.6.8. Review example yaml#

cat hpc7g.4xlarge.cost-alloc-tags-no-update-allowed.yaml

2.6.9. Use the modified yaml file to create the cluster#

pcluster create-cluster --cluster-configuration hpc7g.4xlarge.cost-alloc-tags-no-update-allowed.yaml  --cluster-name cmaq-cost-alloc-testing --region us-east-1

Check on the cluster status#

Use this command to check on the status of the cluster until the clusterStatus is CREATE_COMPLETE.

pcluster describe-cluster --region=us-east-1 --cluster-name cmaq

login to your cluster#

pcluster ssh -v -Y -i ~/cmas.pem --region=us-east-1 --cluster-name cmaq

Resize the EBS Volume#

To resize the EBS volume, run the following command:

sudo resize2fs /dev/nvme1n1

Obtain the Listos Benchmark Case from the S3 bucket#

Note, my original instructions were to put the data on /shared/data, but after having issue running, it is better to move to /fsx to avoid error not finding CONC file due to slower disk speed of /shared volume.

cd /fsx
aws s3 --no-sign-request cp --region=us-east-1 --recursive s3://cmas-cmaq/CMAQv5.4_2018_12LISTOS_Benchmark_3Day_Input .

Obtain the Listos Run script from the S3 bucket#

cp /shared/pcluster-cmaq/run_scripts/c6a/run_cctm_2018_12US1_listos.csh /shared/build/openmpi_gcc/CMAQ_v54+/CCTM/scripts/

Modify the version number in the run script to match the precompiled code version#

cd  /shared/build/openmpi_gcc/CMAQ_v54+/CCTM/scripts/
vi run_cctm_2018_12US1_listos.csh

Modify the run script#

  1. Add slurm instructions

  2. Add CMAQ_DATA environment variable

  3. modify APPL environment variable to match input data

  4. Modify number of processors used

Add the following SLURM instructions to the top of the run script

#!/bin/csh -f
## For Parallel Cluster 16 cores x 2 = 32
## data on /fsx or lustre data directory
## https://dataverse.unc.edu/dataset.xhtml?persistentId=doi:10.15139/S3/LDTWKH
#SBATCH --nodes=2
#SBATCH --ntasks-per-node=16
#SBATCH --exclusive
#SBATCH -J CMAQ
#SBATCH -o cmaq_cost_alloc_tag_%j.txt

Modify the CMAQ version

 set VRSN      = v54+              #> Code Version

Change the APPL environment variable

set APPL  = 12LISTOS_Training

Modify this section of the run script #> Set Working, Input, and Output Directories to use:

setenv CMAQ_DATA /fsx    # add this environment variable

Modify the number of processors used

   @ NPCOL  =  4; @ NPROW =  8  # change this setting

Load the modules to get the libraries and compiler#

module use --append /shared/build/Modules/modulefiles

Check modules that are now available#

module avail

Load the library modules#

module load libfabric-aws/2.3.1amzn1.0  openmpi/4.1.7  ioapi-3.2/gcc-9.5-netcdf  netcdf-4.8.1/gcc-9.5

Submit job to slurm using the –comment flag to specify the project name#

sbatch --comment CMASOps run_cctm_2018_12US1_listos.csh

Note the project names are case sensitive#

Using CMASOPS in all caps for the project name does not work, and the user is told that they are not allowed to run a job using that project name.

sbatch --comment CMASOPS run_cctm_2018_12US1_listos.csh
You are not allowed to use the project CMASOPS

Changing the project name from CMASOPS to CMASOps works

ubuntu@ip-10-0-7-27:/shared/build/openmpi_gcc/CMAQ_v54+/CCTM/scripts$ sbatch --comment CMASOps run_cctm_2018_12US1_listos.csh
Submitted batch job 2

 sbatch --comment ProjectC run_cctm_2018_12US1_listos.csh

Output

You are not allowed to use the project ProjectC

Note that the projects are listed in the projects_list.conf from the s3 bucket, and it may be modified to use different project names. The restriction to specific project names works in Slurm, but doesn’t work to properly tagged to the project specified by the sbatch –comment command

Use squeue to check on status of runs#

squeue

Output

             JOBID PARTITION     NAME     USER ST       TIME  NODES NODELIST(REASON)
                 4    queue1     CMAQ   ubuntu  R       1:24      2 queue1-dy-compute-resource-1-[2-3]

Verify that the run completes successfully#

grep -i error CTM_LOG*
tail cmaq_cost_alloc_tag*.txt

Output

==================================
  ***** CMAQ TIMING REPORT *****
==================================
Start Day: 2018-08-05
End Day:   2018-08-07
Number of Simulation Days: 3
Domain Name:               2018_12Listos
Number of Grid Cells:      21875  (ROW x COL x LAY)
Number of Layers:          35
Number of Processes:       16
   All times are in seconds.

Num  Day        Wall Time
01   2018-08-05   57.0
02   2018-08-06   63.7
03   2018-08-07   57.6
     Total Time = 178.30
      Avg. Time = 59.43

Check the status of the cluster via the console and the command line to verify that the compute nodes have shut down#

pcluster describe-cluster --cluster-name cmaq --region us-east-1

Terminate the cluster after the compute nodes have successfully terminated.#

pcluster delete-cluster --cluster-name cmaq --region us-east-1

Verify that the cost allocation tags are visible on the head node and compute nodes using the AWS Console#

Login to aws console search for ec2 look for the headnode and compute nodes that are running. Select the headnode, and then click on the Tags (all the way on the right)

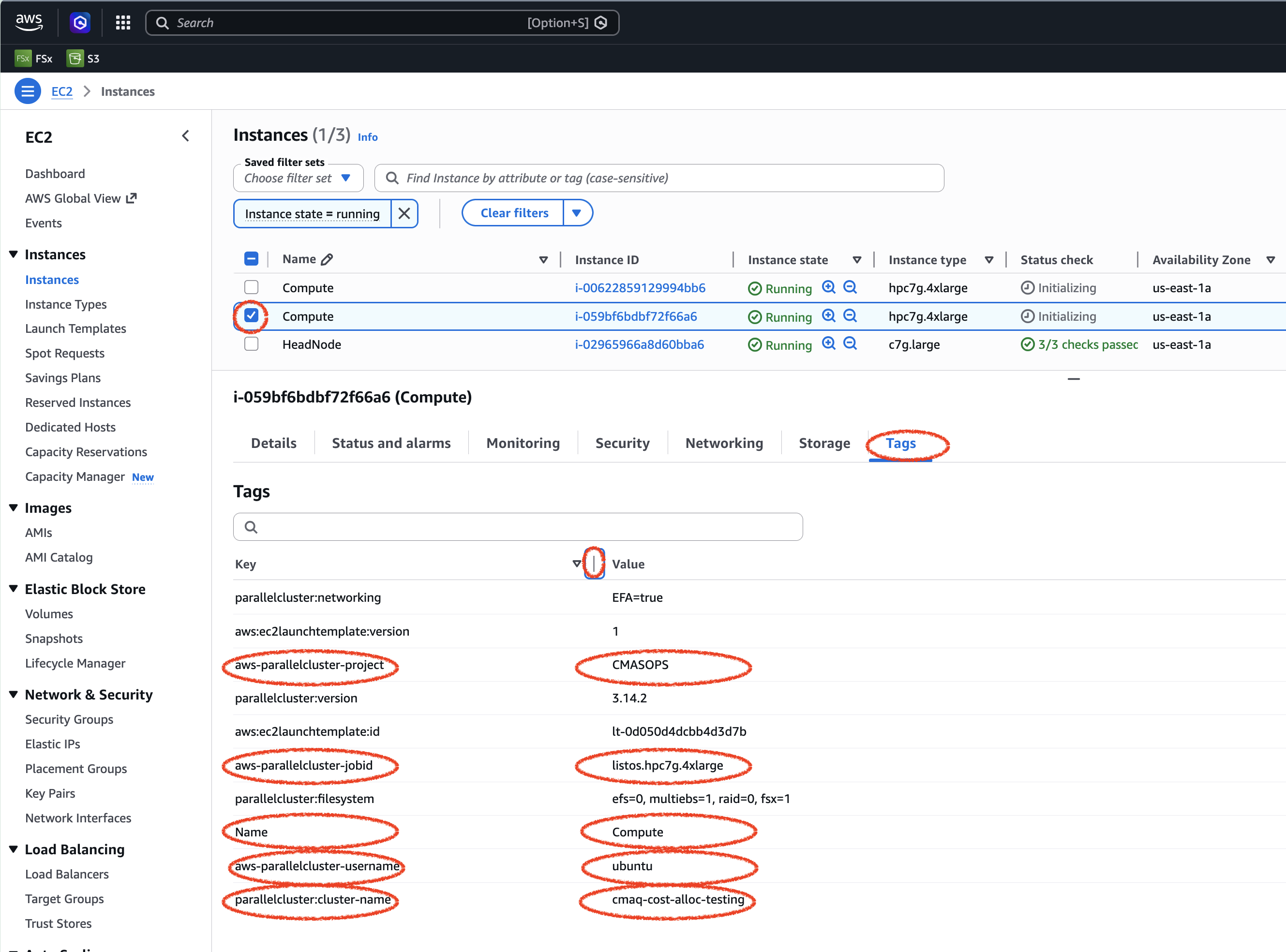

AWS Console EC2 Display Tags applied to headnode

AWS Console EC2 Display Tags applied to compute node

Use Cost Explorer to examine costs by tag#

Note It takes 24 hours for the cost data to appear in the Cost Explorer. Once 24 hours has elapsed check the AWS Website Cost Explorer and select by tags.

AWS Console Cost Explorer

Unable to update Tag values#

Tried updating the cluster to use different values for tags

Error message:


pcluster update-cluster --cluster-configuration hpc7g.test2  --cluster-name pcluster --region us-east-1
{
  "message": "Update failure",
  "updateValidationErrors": [
    {
      "parameter": "Tags[aws-parallelcluster-jobid].Value",
      "requestedValue": "12LISTOS_Training_hpc7g.16xlarge",
      "message": "Update actions are not currently supported for the 'Value' parameter. Restore 'Value' value to '12US1CMAQ.hpc7g.4xlarge'. If you need this change, please consider creating a new cluster instead of updating the existing one.",
      "currentValue": "12US1CMAQ.hpc7g.4xlarge"
    },
    {
      "parameter": "Tags[aws-parallelcluster-project].Value",
      "requestedValue": "CMASOPS-12LISTOS_Training",
      "message": "Update actions are not currently supported for the 'Value' parameter. Restore 'Value' value to 'CMASOPS'. If you need this change, please consider creating a new cluster instead of updating the existing one.",
      "currentValue": "CMASOPS"
    }
  ],
  "changeSet": [
    {
      "parameter": "Tags[aws-parallelcluster-jobid].Value",
      "requestedValue": "12LISTOS_Training_hpc7g.16xlarge",
      "currentValue": "12US1CMAQ.hpc7g.4xlarge"
    },
    {
      "parameter": "Tags[aws-parallelcluster-project].Value",
      "requestedValue": "CMASOPS-12LISTOS_Training",
      "currentValue": "CMASOPS"
    }
  ]
}

Stop the compute fleet before trying to update tags#

pcluster update-compute-fleet --cluster-name pcluster --region us-east-1 --status STOP_REQUESTED

 pcluster describe-cluster --cluster-name pcluster --region us-east-1
{
  "creationTime": "2026-06-04T18:54:48.482Z",
  "headNode": {
    "launchTime": "2026-06-04T19:08:04.000Z",
    "instanceId": "i-01453c1a12388173e",
    "publicIpAddress": "13.221.205.184",
    "instanceType": "c7g.large",
    "state": "running",
    "privateIpAddress": "10.0.10.204"
  },
  "version": "3.14.2",
  "clusterConfiguration": {
  },
  "tags": [
    {
      "value": "3.14.2",
      "key": "parallelcluster:version"
    },
    {
      "value": "12US1CMAQ.hpc7g.4xlarge",
      "key": "aws-parallelcluster-jobid"
    },
    {
      "value": "pcluster",
      "key": "parallelcluster:cluster-name"
    },
    {
      "value": "CMASOPS",
      "key": "aws-parallelcluster-project"
    },
    {
      "value": "lizadams",
      "key": "aws-parallelcluster-username"
    }
  ],
  "cloudFormationStackStatus": "CREATE_COMPLETE",
  "clusterName": "pcluster",
  "computeFleetStatus": "STOPPED",
  "cloudformationStackArn": "arn:aws:cloudformation:us-east-1:440858712842:stack/pcluster/dc2e8710-6046-11f1-8fe5-0e525b316913",
  "lastUpdatedTime": "2026-06-04T18:54:48.482Z",
  "region": "us-east-1",
  "clusterStatus": "CREATE_COMPLETE",
  "scheduler": {
    "type": "slurm"
  }
}

try to update the cluster tag aws-parallelcluster-jobid now that the compute nodes are stopped.#

still failed

 pcluster update-cluster --cluster-name pcluster --region us-east-1 --cluster-configuration hpc7g.test2
{
  "message": "Update failure",
  "updateValidationErrors": [
    {
      "parameter": "Tags[aws-parallelcluster-jobid].Value",
      "requestedValue": "12LISTOS_Training_hpc7g.16xlarge",
      "message": "Update actions are not currently supported for the 'Value' parameter. Restore 'Value' value to '12US1CMAQ.hpc7g.4xlarge'. If you need this change, please consider creating a new cluster instead of updating the existing one.",
      "currentValue": "12US1CMAQ.hpc7g.4xlarge"
    }
  ],
  "changeSet": [
    {
      "parameter": "Tags[aws-parallelcluster-jobid].Value",
      "requestedValue": "12LISTOS_Training_hpc7g.16xlarge",
      "currentValue": "12US1CMAQ.hpc7g.4xlarge"
    }
  ]
}

When different cost tag values need to be used, then delete the current cluster, revise the yaml file to modify the tags, and then create a new cluster.

Exploring Tags in Cost Explorer#

It takes 24 hours for the cost data to appear in the Cost Explorer. Once 24 hours has elapsed check the AWS Website Cost Explorer and select by tags.

AWS Tutorial on creating Pcluster with Slurm Accounting#

Note that this requires an external (MySQL or MariaDB) database server. Creating a cluster with Slurm accounting and Slurm accounting with AWS Parallel Cluster
